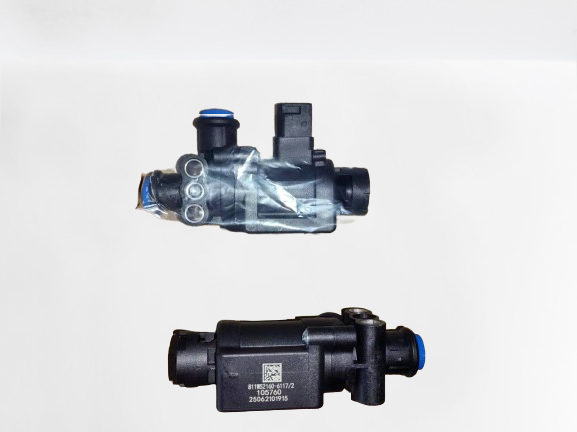

3/2-Way Solenoid Valve 811W52160-6117

3/2-Way Solenoid Valve 811W52160-6117

The 3/2-Way Solenoid Valve 811W52160-6117 is an electrically controlled valve with two positions and three ports, widely used in industrial automation control systems. This product controls the movement of the valve core via electromagnetic force to switch between different flow paths, thereby precisely directing or stopping fluid flow.

1.Basic Control Function

The core function of the valve is to control fluid flow via electrical signals. When the solenoid coil is energized, the plunger moves to a specified position, changing the flow path. When de-energized, the plunger returns to its initial position via a spring, achieving path switching. This control method is characterized by fast response and reliable operation.

2.Directional and Diverter Function

The valve offers multiple operating modes, including one-in/one-out, one-in/two-out, and two-in/one-out configurations. In the normally closed mode, the inlet connects to the outlet when energized, and the outlet connects to the exhaust when de-energized. In the normally open mode, the inlet and outlet are disconnected when energized and connected when de-energized. This flexibility allows it to adapt to various application needs.

3.Pressure Adaptation Capability

The valve can operate under special conditions like vacuum, negative pressure, and zero pressure. The valve body can be installed in any orientation, offering strong environmental adaptability. Some models also feature explosion-proof capabilities for safe use in hazardous environments.
