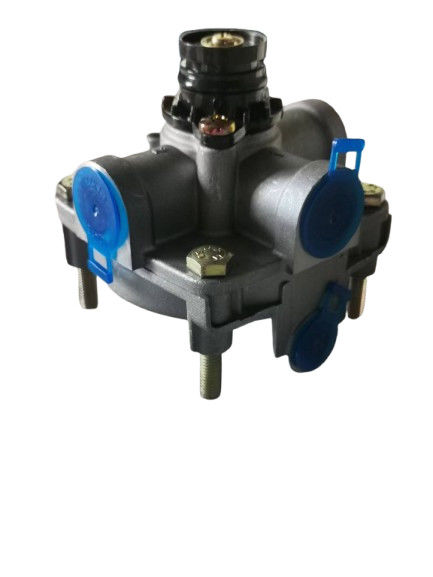

DZ95259360105 Relay Valve

Function, Specifications, Materials, and Key Parameters of DZ95259360105 Relay Valve Assembly

1. Function

The DZ95259360105 relay valve is a critical component in the vehicle's air brake system, primarily functioning as a control valve to accelerate the charging and discharging process. By shortening the (chōng qì, charging) and (pái qì, discharging) times, it enhances the brake response speed. Typically installed at the end of long pipelines (e.g., in trailer or semi-trailer brake systems), it directly connects the air reservoir to the brake chamber, enabling rapid air intake and thus improving braking efficiency.

2. Specifications

• Part Number: DZ95259360105

• Brand: Compatible with Shaanxi Automobile Group  models, such as Delong H3000, X3000, New M3000, M3000S, X5000, X6000, F3000, and F2000

• Model: Specifically designed for the brake system of medium and heavy-duty commercial vehicles

• Type: Relay valve assembly for vehicle braking systems

• Configuration: Includes valve body, piston, intake valve, exhaust valve, and other components

3. Materials

• Valve Body: Constructed from high-strength aluminum alloy to withstand high pressure and corrosion

• Piston and Valves: Made from wear-resistant steel to ensure smooth operation and long service life

• Seals: Utilize high-quality rubber or polyurethane materials to prevent air leakage

4. Key Parameters

• Working Pressure: Typically designed to operate within a range of 0.65 to 0.8 MPa, ensuring reliable performance under various braking conditions

• Response Time: The relay valve can significantly shorten the(charging) and (discharging) times by over 60%, improving braking responsiveness

• Flow Rate: High flow capacity to ensure rapid air transfer between the air reservoir and brake chambers

• Operating Temperature Range: Designed to operate effectively between -40°C and +120°C, accommodating various environmental conditions

• Weight: Approximately 0.8 kg (specific weight may vary slightly based on design and materials)

• Compatibility: Specifically designed for use with Shaanxi Automobile Group's heavy-duty truck models, ensuring seamless integration and optimal performance

• Mounting Type: Designed for easy installation on the vehicle's brake system, with specific mounting holes and brackets for secure attachment
