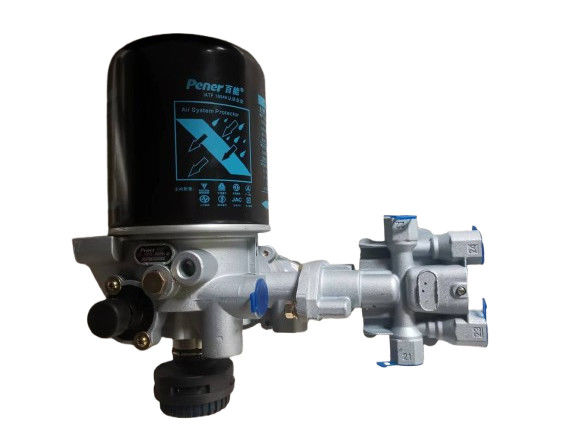

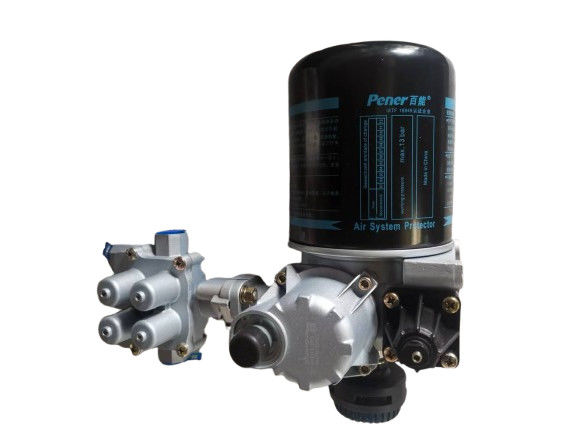

DZ96189361084 Air Dryer Assembly

Function, Specifications, Materials, and Key Parameters of DZ96189361084 Air Processing Unit

1. Function

The DZ96189361084 air processing unit is a critical component in the vehicle's air brake system, primarily responsible for filtering, drying, and regulating compressed air. It removes moisture, oil, and other contaminants from the compressed air, ensuring the cleanliness and dryness of the air supplied to the brake system. This helps to prevent corrosion and freezing in the brake lines, ensuring the reliability and safety of the braking system.

2. Specifications

• Part Number: DZ96189361084

• Brand: Shaanqi Heavy-Duty Truck  or compatible with SHACMAN vehicles

• Model: Designed for use in the air brake systems of commercial vehicles, such as the Shaanxi Automobile Delong series

• Type: Air processing unit with integrated filtration, drying, and pressure regulation functions

3. Materials

• Casing: Constructed from high-strength alloy steel or aluminum alloy to withstand high pressure and ensure durability

• Internal Components: Made from corrosion-resistant materials, such as stainless steel or high-grade plastics, to enhance reliability and service life

• Filter Element: Typically uses a high-efficiency filter medium to remove contaminants from the compressed air

• Desiccant: Contains a molecular sieve or silica gel desiccant to absorb moisture from the compressed air

4. Key Parameters

• Working Pressure: Rated to withstand pressures typically encountered in commercial vehicle air brake systems (specific value not provided, but generally ranges from 10 to 16 bar)

• Flow Rate: The capacity to process compressed air, which determines the efficiency of filtration and drying (specific value not provided, but generally ranges from 500 to 2000 liters per minute for such applications)

• Operating Temperature Range: Designed to operate effectively in various environmental conditions (specific value not provided, but typically designed to operate between -40°C and +80°C)

• Filter Efficiency: High-efficiency filtration to remove particles and contaminants from the compressed air

• Desiccant Capacity: The amount of desiccant material used in the unit, which determines its moisture absorption capacity (specific value not provided, but generally ranges from 0.5 to 2 kilograms for such applications)

• Mounting Type: Designed for easy mounting on the vehicle frame, with specific mounting holes and brackets for secure attachment

• Weight: The weight of the air processing unit may vary based on materials and design, but it is typically compact and lightweight for easy installation (approximately 4.5 kg for some models)
