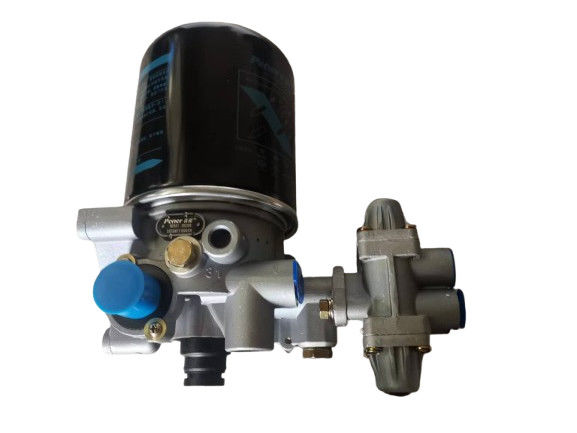

DZ96189360003 Air Dryer Assembly

Function, Specifications, Materials, and Key Parameters of DZ96189360003 Dryer Assembly

1. Function

The DZ96189360003 dryer assembly is a crucial component in the air brake system of commercial vehicles, such as the Shaanxi Automobile Delong X3000. Its primary function is to remove moisture and contaminants from the compressed air, ensuring the reliability and longevity of the air brake system. By preventing water accumulation and corrosion, it helps maintain optimal braking performance and reduces the risk of system failures.

2. Specifications

• Part Number: DZ96189360003

• Brand: Shaanqi Heavy-Duty Truck

• Compatibility: Designed for use in the Shaanxi Automobile Delong X3000, F3000, New M3000, and other compatible models.

• Type: Air dryer assembly with a four-circuit protection valve, suitable for heavy-duty commercial vehicle applications.

3. Materials

• Casing: Constructed from high-strength alloy steel or aluminum to withstand high pressure and ensure durability.

• Internal Components: Made from corrosion-resistant materials, such as stainless steel or high-grade plastics, to enhance reliability and service life.

• Desiccant: Typically uses a molecular sieve or silica gel to absorb moisture from the compressed air.

4. Key Parameters

• Working Pressure: Rated to withstand pressures typically encountered in commercial vehicle air brake systems, ensuring safe and reliable operation.

• Flow Rate: The dryer assembly's capacity to process compressed air, which determines the efficiency of moisture removal. (Specific value not provided, but generally ranges from 50 to 200 liters per minute for such applications.)

• Temperature Range: The operating temperature range of the dryer assembly, ensuring it functions effectively in various environmental conditions. (Specific value not provided, but typically designed to operate between -40°C and +80°C.)

• Desiccant Capacity: The amount of desiccant material used in the dryer assembly, which determines its moisture absorption capacity. (Specific value not provided, but generally ranges from 0.5 to 2 kilograms for such applications.)

• Mounting Type: Designed for easy mounting on the vehicle frame, with specific mounting holes and brackets for secure attachment.

• Four-Circuit Protection Valve: Integrates a four-circuit protection valve to ensure the air brake system is divided into independent circuits, enhancing safety and reliability.
