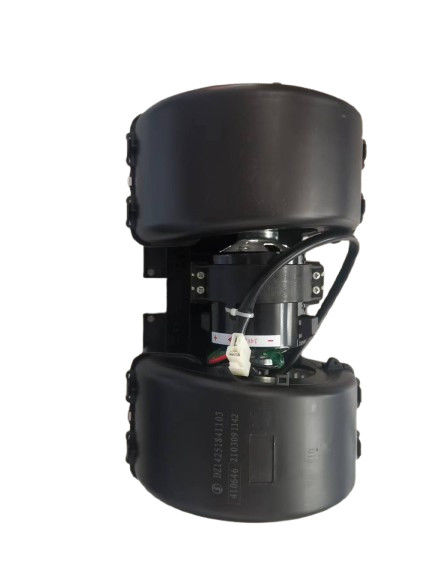

DZ14251841103 Heater Motor

Function, Specifications, Materials, and Key Parameters of DZ1425184110 Heater Assembly

1. Function

• Heating and Ventilation: The DZ1425184110 heater assembly is designed to provide warmth and ventilation within the vehicle cabin, ensuring a comfortable driving environment.

• Integration with Vehicle Systems: It works in conjunction with the vehicle's engine cooling system, utilizing engine heat to warm the cabin air.

• Air Circulation: The assembly includes a blower motor that circulates air through the heater core, distributing warm air evenly throughout the cabin.

2. Specifications

• Part Number: DZ1425184110

• Compatibility: Specifically designed for the DeLong X3000 model, ensuring a perfect fit and optimal performance.

• Components: Includes a heater core, blower motor, housing, and associated ducting and controls.

3. Materials

• Heater Core: Typically constructed from aluminum or copper with aluminum fins for efficient heat transfer.

• Housing: Made from durable plastic or metal to protect internal components and provide structural integrity.

• Blower Motor: Features a motor housing made from metal or high-strength plastic, with internal components designed for long-term reliability.

4. Key Parameters

• Power Consumption: The blower motor operates on the vehicle's electrical system, typically consuming between 50W to 200W, depending on the fan speed setting.

• Airflow Rate: The blower motor is capable of delivering an airflow rate of 200–400 CFM (cubic feet per minute), ensuring efficient cabin heating and ventilation.

• Temperature Range: Designed to operate effectively in temperatures ranging from -40°C to +80°C, adapting to various environmental conditions.

• Noise Level: Operates quietly, with noise levels typically below 50 dB(A) at maximum fan speed, ensuring a comfortable driving environment.

• Weight: The complete heater assembly weighs approximately 3–5 kg, depending on the specific configuration and materials used.

• Dimensions: The assembly measures approximately 300mm (L) × 200mm (W) × 150mm (H), though dimensions may vary slightly based on the vehicle's design.
